The test probe contacts the test point outside the PCB layout to detect the open circuit, short circuit and welding of the parts. It can be divided into open circuit test, short circuit test, resistance test, capacitance test, diode test, triode test, FET test, IC pin test, etc. Missing and incorrect installation, parameter value deviation, continuous welding of solder joints, circuit board open circuit and short circuit and other faults, and output the fault conditions.
Features of online ICT tester:
1. Equipped with EC injection test technology
2. CMOS+ playback switch card design
3. True broadband test technology
4. Humanized win7 interface, simple and easy to operate
5. Powerful board view
6. Five-wire test technology, up to four terminal components can be tested
7. ATPD automatic test program debugging
8. Perfect statistical analysis report to effectively monitor production quality
Q588A-ict online test equipment technical parameters:
| The test points | 384pins(Standard) |
| Test steps | No restrictions |
| Switch Card | Each channel card has 128 channels |
| Isolated points | Each test has 10 |
| The test speed | Open/Short: 0.5sec/1024 points |
| Each part: 2ms ~ 40ms/step |
| 14 bits, 125K/Sec |
| Signal source | AC voltage: 10mVPP ~ 2500mVPP |
| DC voltage: 10mV ~ ±1250mV |
| AC/DC current: 10uA ~ 20mA |
| Test frequency: AC 100 ~ 100KHz |
| Test range | Resistance 0.1Ω ~ 40MΩ Accuracy 0.05Ω~100MΩ (2-wire) ±1%-5% (4-wire) 0.05Ω |
| Capacitor 1nF ~ 40mF Accuracy ±2%-5% |
| Inductor 1uH ~ 50H Accuracy 2%-5% |
| Diode 0.1 ~ 6V Accuracy ±1%-3% |
| Regulator diode 0.1 ~ 15V Accuracy ±1%-3% |
| Transistor three-terminal test Vce saturation voltage and β value |
| FET three-terminal test Vds, Cds, Rd(on) |
| Optical coupler and relay, use four terminals to test their conduction voltage or resistance |
| Polarity test of electrolytic capacitor | 3-terminal electrolytic capacitor polarity test |
| Air soldering test for patch elements (optional) | SMD component open/short circuit and empty soldering test modules can be purchased separately |
| Impedance series parallel | Use multi-frequency test method or amplitude phase method |
| The main processor | PC compatible |
| The operating system | #REF! |
| Circuit board working size | 500mm x 380mm(STANDARD) |
| Machine size & weight | 890mm(W) x 820mm(D) x 1720mm(H), approx. 250Kg |
| Supply pressure | 3 ~ 6Kg/cm2 |
| Use the power supply | AC 100 ~ 240V |

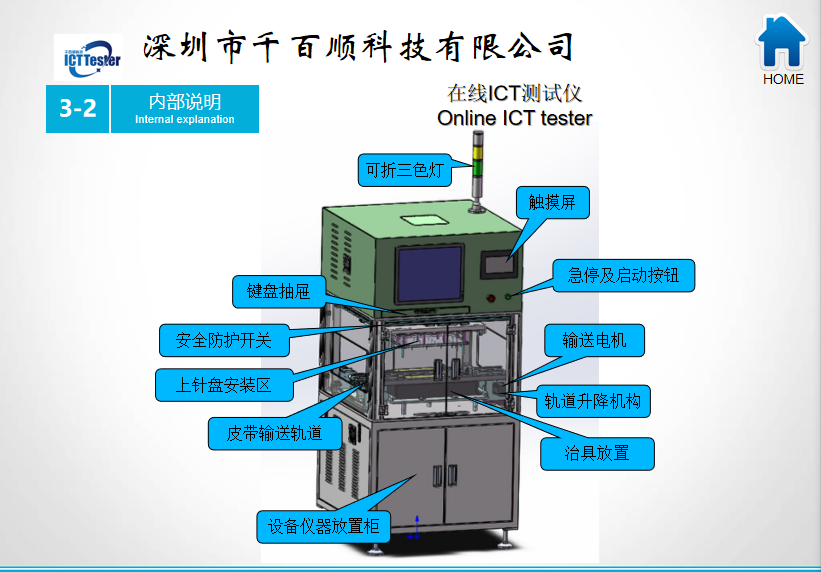

ict online tester-Q588A Introduction:
The PCBA online test upgrade and transformation is designed to meet the current lagging manual PCBA test and the increasing demand for production efficiency. Through the universal docking station, it can be seamlessly connected to the existing production line. In combination with the existing FCT and ICT online test equipment, it can form a complete automated ICT test line to achieve unattended and automatic testing, thereby improving efficiency and reducing labor.
High quality and high reliability meet the quality and efficiency requirements of industrial automation. This system uses pneumatic and PLC technology to achieve automated operation, reduce manpower, improve efficiency, and ensure product quality. Through automated operation methods, the production efficiency, quality control and management level of various products are comprehensively improved to provide customers with high quality, reduce costs and create higher profits.
Questions? We have answers：
Ask a Question: What is ICT tester?
Professional answer: ICT (In-Circuit Test System), mainly used for testing assembled circuit boards (PCBA). The "online" here is a direct translation of "In-Circuit", which mainly refers to components on the line. Online testing is a testing technology that does not disconnect the circuit or remove the pins of components. "Online" reflects that ICT focuses on detecting assembly problems of circuit boards by testing components on the line or open and short circuit states.
Ask a Question: What components can the basic functions of ICT tester measure?
Professional answer: Open, short circuit, resistance, capacitance, inductance, diode, IC protection diode test, etc.
Ask a Question: Why use ICT tester?
Professional answer: According to the statistics of the circuit board assembly industry, assembly defects are mainly reflected in welding open circuit, short circuit, offset, missing parts, etc., accounting for more than 90%. Therefore, the principle of online testing technology application is to be able to quickly detect faulty components or assembly defects, and to accurately locate defects and defect classification.
Ask a Question: Can an ICT tester be considered a multimeter?
Professional answer: ICT can be considered an automated advanced multimeter, and because it has the function of circuit isolation (Guarding), it can accurately measure the actual value of each component in the circuit.
Ask a Question: What is the difference between the functions of an ICT tester and a general meter?
Professional answer: A meter is used to measure a single part, while ICT can measure parts on a real board through a needle bed in addition to measuring a single part. However, there are many circuits on a real board, which can easily divide the signal source and divide the voltage, so it is often necessary to add the "Guarding" function to make the measurement accurate.
Ask a Question: What is the relationship between ICT and AOI?
Professional answer: ICT is mainly carried out through electrical measurement methods, while AOI is carried out through optical image processing technology. The two have their own strengths and complement each other. In terms of process arrangement, AOI is generally performed first, followed by ICT.
1. How does the ICT in-circuit tester work?
Check the electrical performance of online components on the manufacturing board and the connection of the circuit network. It can quantitatively measure devices such as resistors, capacitors, inductors, crystal oscillators, etc., perform functional tests on diodes, optocouplers, transformers, relays, etc., and perform functional tests on small and medium-sized integrated circuits, such as all 74 series, memory types, ordinary drive types, switch types, etc.
By directly testing the electrical performance of online devices, manufacturing process defects and component defects are found. For component types, it can check component value tolerance, failure or damage, memory program errors, etc. For process types, it can find faults such as solder short circuit, wrong component insertion, reverse insertion, missing installation, pin lift, cold welding, PCB short circuit, and broken wire.
The tested fault is directly located on specific components, device pins, and network points. The fault location is accurate, and repairing the fault does not require too much professional knowledge. It uses program-controlled automated testing, which is simple to operate and fast to test. The single-board test time is generally a few seconds to tens of seconds.
2. What are the advantages of ICT online tester?
1. Improve product quality
There must be enough test points. ICT can measure all circuits and parts on the circuit. Parts on the bypass (by pass) can be measured, which can improve product quality, reduce customer complaints, and even improve efficiency.
2. Fast test speed and short time
PCBA can perform L/C/R/D tests without power on, which can effectively reduce the waiting time for test startup and reduce accidents of circuit board burning due to short circuit. A circuit board with 300 parts can be tested in 3~5 seconds at the fastest. Of course, the whole machine working time must be added with loading and unloading.
3. Improve product breeding rate (pass rate)
Through rapid detection, problems are immediately fed back to the front-end SMT operation, reducing product defect rate, reducing inventory inventory and defective product stacking, reducing costs, and improving breeding capacity.
4. Good strictness
Through computer program control and precision detection, the risk of penalty points and missed judgment is greatly reduced, and the difficulty of production line is reduced. (If there is a problem at the detection point, a penalty may be generated)
5. Low dependence on existing technology
Since the entire process is controlled by computer, the operation time and failure rate of personnel are greatly reduced. General operators only need a little training to easily operate the equipment and can change the detection program by themselves. (The detection program must be maintained by professional technicians or engineers).
6. The maintenance cost of agricultural products is greatly reduced
General operating employees can carry out product maintenance work, effectively reducing personnel costs. ICT can determine which components or nodes have problems through computer programs, greatly reducing the speed at which technical employees re-measure defects and troubleshoot.
3. What can ICT online tester help you accomplish?
ICT testers are versatile tools that can help organizations achieve a wide range of goals. One of the main advantages of ICT testers is that they can ensure the functionality and performance of ICT systems. By using various testing methods such as functional testing, performance testing, and security testing, ICT testers can help identify any potential problems or vulnerabilities in the system. This proactive approach can ultimately help companies avoid costly downtime and reputation damage.
In addition to ensuring the quality and reliability of ICT systems, ICT testers can also help organizations streamline processes and improve efficiency. By automating the testing of various ICT components, businesses can reduce the time and resources required for testing, allowing them to focus on other strategic initiatives. This can lead to a more agile and competitive business environment, ultimately driving growth and profitability.
In addition, ICT testers can also assist businesses in meeting regulatory requirements and industry standards. With the increasing emphasis on data security and privacy, organizations are under pressure to comply with regulations such as GDPR and HIPAA. ICT testers can help businesses ensure that their systems comply with these regulations, reducing the risk of non-compliance penalties and potential data breaches.
